The Difference Between Industrial Design and Product Engineering

A model that cannot be moulded, sealed or assembled is industrial design that has not met engineering. A structure nobody can hold, open or understand is engineering that has not met use. The product is one geometry. Conflicts get written down and closed, not averaged until the meeting ends. The figures later are hypothetical teaching maths, not a BrahmWorks measurement and not a moulding rule.

Industrial design hands over a definition of use and a form that serves it. Which hand, what light, gloves or not, where the eye goes, which surface is touched. Colour and texture belong to that definition. A rendering with no stated use can be liked. It cannot be checked.

Product engineering hands over parts a named process can make. Wall section, draft, ribs, bosses, seals, fasteners, the thermal path, the tolerances a fit depends on, and assembly order. Where mains is present, creepage and insulation are constraints with a qualified reading of the rules that apply. They are not styling. A surface with no material callout is not yet a part.

The usual failure is using up the other side's freedom. The outer skin is frozen, and engineering is told to fit the insides. Or the board and cell are frozen, and industrial design is told to wrap them without moving a connector. List the shared limits while the model is still cheap to change.

How an interface is written tightly enough to design against is covered in Hardware Product Development Process Explained. This article stays with the difference in the work.

Industrial design argues from use. A thicker grip may be right because hands are wet. Product engineering argues from process and physics. That grip may be impossible as a constant section once draft is required, or it may put a boss through the cell. Neither argument outranks the other in general. A safety or legal constraint outranks both. A logo does not outrank a seal. Mark preferences so they are allowed to lose. If every sentence is a constraint, the last editor makes the trade alone.

Colour and resin are the public collision. Recognition wants a colour. Temperature, impact or chemical resistance wants a resin. A colour that resin cannot hit is a real conflict, not a difficult supplier. Change the colour, change the resin and re-check why you needed it, or change the process. "The moulder will match the render" spends the tool first.

Service is both jobs. One side decides whether a person opens a door, returns the unit, or never touches it. The other decides whether that story is possible. A unit that cannot be opened is a consumable. Price and support it as one.

The teaching product is a handheld meter dropped into a dock. Industrial design sets a straight grip, 42 mm wide, from a use test, and a dock mouth of 45 mm. Clearance is 45 − 42 = 3 mm, drawn on a section that does not change width. For this exercise only, moulding needs 1.5 degrees of draft, opening toward the base, over 80 mm of grip. That angle is not a recommendation and not a supplier limit.

Sideways shift is height times tan of the angle. Here tan(1.5°) = 0.02619. Then 80 × 0.02619 = 2.095 mm each side, and 4.19 mm across the grip. Keep the top at 42 mm and the base becomes 42 + 4.19 = 46.19 mm.

The dock is 45 mm. The base misses by 46.19 − 45 = 1.19 mm, before any tolerance. The 3 mm of clearance has been spent, and 1.19 mm more than spent. The drop-in is gone on the nominal geometry.

The options each have an owner. Draft the other way and accept a wider top in the hand. Split the draft so the maximum stays inside 45 mm. Open the dock. Change the process so that face is not drafted like this. None of these is "CAD adds draft at the end". End is how the hand test and the dock disagree with the tool, after both sides believe they have finished.

Tolerances are not in the 1.19 mm. If they consume more of the mouth, the interference grows. Use your angle, height and dock. Do not reuse these inputs as advice.

Review the outer form on the same model as the board, the cell, the seal and the fasteners. A rendering with no wall thickness cannot host that review. A section through grip, dock and connector shows the clash while it is a sketch. A print can test the hand. It cannot approve the mould. Say which question the model answers, so a comfortable print is not filed as an engineering pass.

Include whatever the form must enter: dock, charger, mount, carton. A pleasant grip that misses its dock has failed the product, not one department. Split reviews produce two objects that share a name.

• Use is written: hand, environment, what the person must see and operate.
• Preferences are marked, and they can lose.
• Safety and legal constraints are not traded in a styling review.
• Draft, wall section and process sit on the same model as the outer surface.
• Colour and resin are one decision.
• Board, cell, antenna and seals are in the form, not promised in afterwards.
• A print has a stated question and a list of conclusions it cannot support.
• Dock, charger or pack is in the review if the form must enter it.
• One owner records the conflict and the option that was rejected.

Yes, on a small product, if both arguments are written down. The failure is not two departments. It is one person skipping the stack for the surface, or the hand for the process. A reviewer who did not draw the form is still useful. Titles matter less than whether both lists exist.

Agree before it is beautiful. One master should accept the surface and the engineering features. A styling file and a separate "real" file drift, and the tool gets cut from the wrong one. Ownership includes who may move a surface after the other discipline has started.

When the use questions are answered, and further moves would consume draft, a wall, a seal or a lead time you mean to protect. Freezing a surface because a rendering was admired, while draft is unchecked, freezes the wrong thing. A late colour change is cheap only if the resin and the tool can absorb it. A late split line is not a colour change.

Both. Texture and coating change grip, cleaning, release from the tool, and how many parts are thrown away for looks. A finish the process cannot hold will be widened on the line until the line is comfortable. That limit is a product decision. Write it while both sides are in the room.

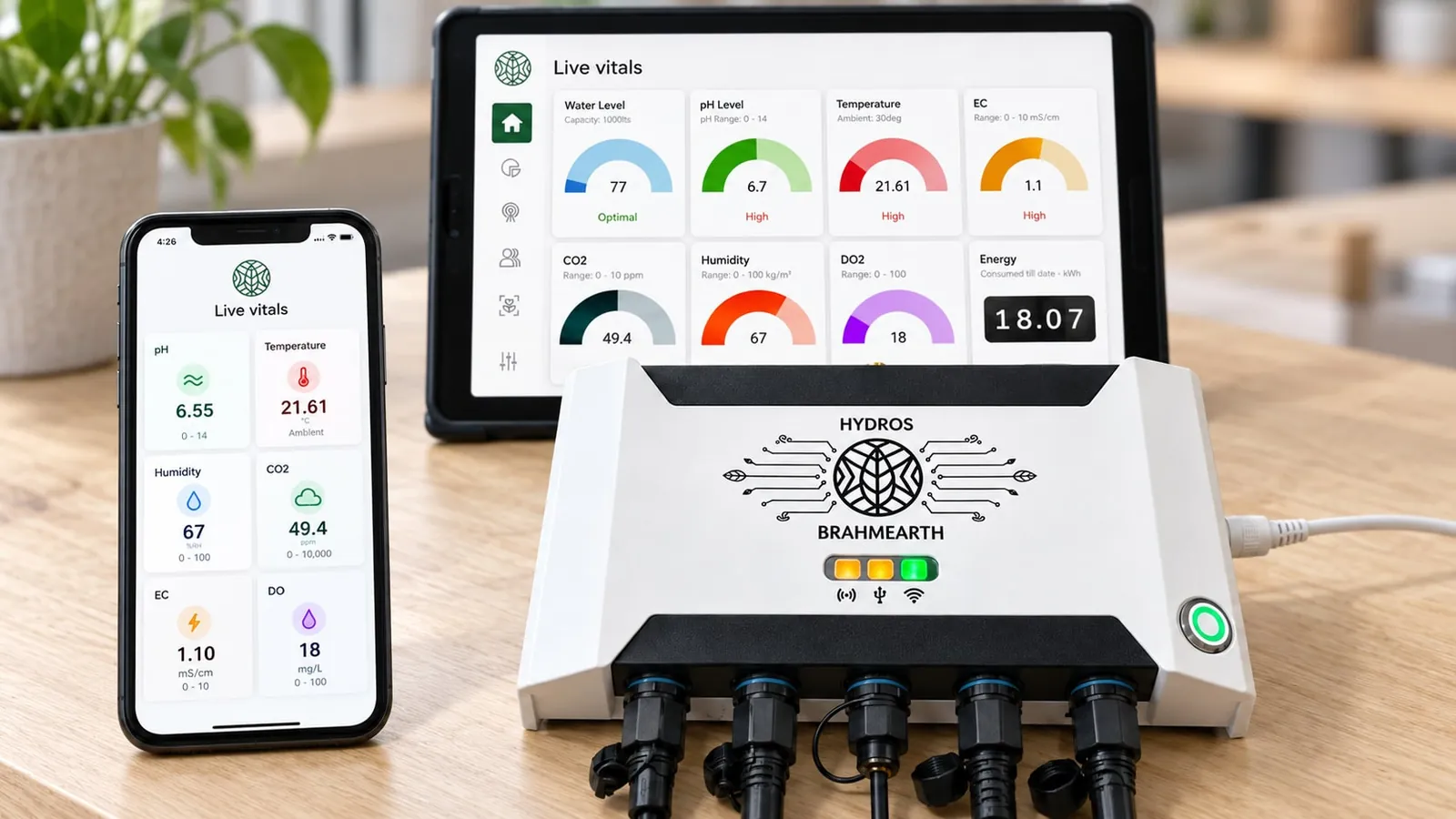

BrahmEarth environmental products need the same review. Enclosure, sensing window, the controls a person uses and the electronics behind them are one assembly. A shell signed off as a look, and a board signed off as a circuit, meet as a window the sensor cannot use. No yield, cost, time or test result is stated for that work.

Bring the use statement, the model and the process you are heading for. BrahmWorks can mark where form and engineering already disagree, while the disagreement is a change to a file rather than a change to a tool.
